Lab Scale Fluid Processors

Lab Scale Fluid Processors

Microfluidics produces patented Microfluidizer® processors with high pressure, fixed-geometry interaction chambers that impart intense energy to product formulations.  Microfluidics’ unique design provides the highest-shear processing with guaranteed scale up.  This guarantee allows any lab scale unit will exhibit the same performance as a pilot scale machine or a production unit.

  • LV1
  • LabMate (LM-10)
  • M-110Y
  • M-110P

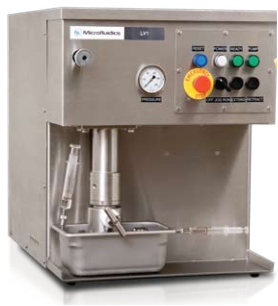

LV1

The Microfluidics LV1 is designed to provide high shear Microfluidizer processing capabilities to samples as small as 1 mL. This bench-top machine is capable of processing a wide variety of fluids such as oil-in-water emulsions, solids-in-liquid suspensions and cells, including the most difficult yeast cells, in as few as 1-2 passes.

  • Sample Volume/Stroke: 1- 6 mL
  • Chambers optimized according to application
  • 10 mL syringe type feed reservoir
  • Flush to clean, no disassembly required
  • Operating Pressure: Up to 30,000 psi
LV1
For more information click here.

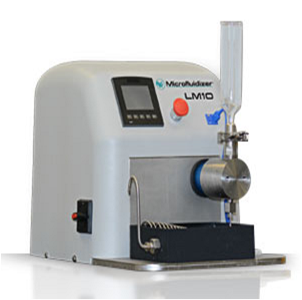

LabMate (LM-10)

Microfluidics is introducing a new lab scale instrument this year with the LM-10 or LabMate unit.  This instrument will allow users to process small scale samples with speed and efficiency.  The LM-10 is ideal for cell lysis, liposome production, creating emulsions and dispersions.  This is an affordable high shear fluid processor which will allow any user the performance of Microfluidics technology.

  • Portable bench-top unit
  • Up to 23,000 psi
  • Minimum Sample Size: 14 mL
  • Sample Flow Rate: Up to 270 mL/min
  • Digital Pressure Control
  • Temperature Monitoring
  • Requirements: 25 scfm air using a 5.6 kW compressor; 110V electrical

LM10 3

For more information click here.

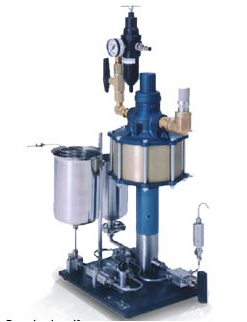

M-110Y

The M-110Y Microfluidizer is the most adaptable of the air-drive processors and is ideal for multiple applications.  As a bench top processor, it provides flexibility and high-throughput. The M-110Y comes standard with two interaction chambers for expanded processing capabilities.

  • External high pressure pneumatic
  • Production of stable nanodispersions and nanoemulsions
  • Up to 23,000 psi
  • Minimum Sample Size: 60 mL
  • Sample Flow Rate: 100 - 600 mL/min
  • Air Pressure Requirements: 56 scfm @ 96 psi; 15 hp compressor required or 26 l/sec @ 5.0 bar; 11 kW compressor required
M-110Y
For more information click here.

M-110P

The M110-P series is the Microfluidics premium bench-top high shear processor that provides processing at up to 30,000 psi while running on a 120-volt outlet. The M110-P can be configured for small volumes and reduced pressures (20,000 psi).

  • M110-P, M110-PS, M110-P20 or M110-P20S
  • Plug and Play system, electro-hydraulic
  • Operating Pressure: Up to 30,000 psi (20,000 psi for the M110-P20 and M110-P20S)
  • Minimum Sample Size: 25 mL
  • Sample Processing: Up to 125 mL/min
  • Glass or stainless steel sample reservoir
  • Used for production of stable nano-dispersions and nano-emulsions

M-110P

For more information click here.
