Pilot Scale and Production Machines

Microfluidizer® pilot / production high pressure fluid processors reduce time-to-market with repeatable linear scale up from the lab, enabled by the unique fixed-geometry interaction chamber. In addition, high shear levels typically enhance process efficiency by requiring fewer passes.

  • M110-EH
  • M815
  • M-700 Series

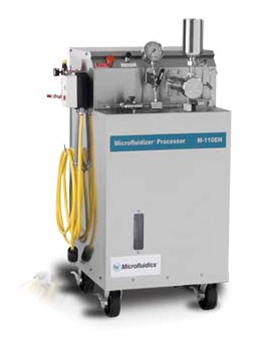

The M110-EH bridges the gap between R&D and production.  The advantages are enhanced output (30,000 psi) and flow rates up to 450 ml/min.

  • Sample Flow Rate: Up to 450 mL/min
  • Processing Pressure: Up to 30,000 psi
  • Guaranteed scale up to pilot plant volume
  • Patented, wear resistant diamond interaction chamber (no moving parts)
  • On-board heat exchanger for consistent discharge product temperature
  • Ceramic (Zirconia) plunger for extended seal life
  • Designed for clean-in-place with no disassembly required
  • Available with clean-in-place and steam-in-place option
  • Available explosion-proof option
  • cGMP and cGAMP compliant
M-110-EH

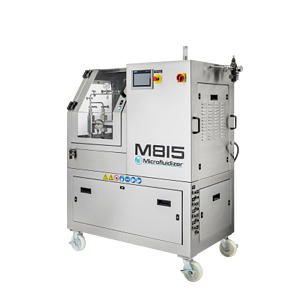

Microfluidics has introduced a machine which bridges the gap between initial pilot scale processing and production scale processing.  The M815 generates up to 30,000 psi with volumes up to 1 liter per minute.

  • Scale up pilot plant
  • Sample Flow Rate: Up to 1 L/min
  • Processing Pressure: Up to 30,000 psi
  • Guaranteed scale up to pilot plant volume
  • Patented, wear resistant diamond interaction chamber (no moving parts)
  • On-board heat exchanger for consistent discharge product temperature
  • Ceramic (Zirconia) plunger for extended seal life
  • Designed for clean-in-place with no disassembly required
  • Available with clean-in-place and steam-in-place option
  • Available explosion-proof option
  • cGMP and cGAMP compliant

Microfluidics’ production scale processors are the 700 series. Systems are optimized for specific production needs. The M-700 generates up to 30,000 psi with volumes up to 4 gallons per minute. Multiple options are available so that the system can be set to best meet both a customer’s production requirements and budget.

  • Production plant scale
  • M-7115, M-7125 or M-7250 models
  • Electric-hydraulic system
  • Sample Flow Rate: 0.25 – 4 gpm
  • Up to 30,000 psi
  • 15 – 50 HP power requirement
  • Integration to process automation (DCS or SCADA) available
M-700


For more information click here.
